| Ore-smelting Furnace Series >> Directly-cooled Type Red Copper Forging Brasses >> Directly-cooled type red copper forging brasses |
|
 |
| |
|
|
Number: |
yc-0018 |
Name: |
Directly-cooled type red copper forging brasses |
Spec: |
|
Memo: |
|
Class: |
Ore-smelting Furnace Series |
| |
|
|
Provide energy saving brasses for ore-smelting furnace according to user’S drawings．
Directly—cooled trpe red copper foring brasses was a new product for use with ore-smelting furnace developed in 1 998，now this product formed a series．
It was press processed using the T2 red copper，SO it's of high density．Cooling water tunnel is gun dirlled with deep hole driller to achieve good conductivity and cooling performance，and SO reducing the power loss in the brasses，for longer working life。
|
|
|
|
| |
| Performance parameter |
| 型 号 |
导电率%★ |
电阻率Ω.mm2/m |
导电率W/m.k |
抗拉强度N/mm2 |
硬度HB |
|
ZQSn6-6-3 |
11.5 |
0.15 |
92.1 |
195 |
65 |
|
ZH96 |
56 |
0.031 |
245 |
235 |
63.7 |
|
T2(锻造) |
100 |
0.0175 |
390 |
240★★ |
54.3 |
|
注：★以T2铜导电率为100% ★★退火状态 | |
| |

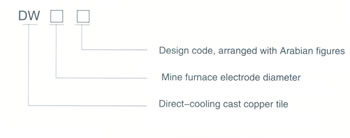

| Model |
 |
| |
| Direct-cooling cast copper tile technical parameters |
|
型 号 |
电极直径 |
每相电极上的件数 |
允许最大电极电流 |
基本外型尺寸
厚×宽×高 |
|
DW-500-□ |
500 |
4 |
25 |
50×340×600 |
|
DW-600-□ |
600 |
4 |
34 |
55×400×700 |
|
DW-700-□ |
700 |
6 |
45 |
55×340×700 |
|
DW-800-□ |
800 |
6 |
54 |
60×380×800 |
|
DW-900-□ |
900 |
8 |
62 |
60×320×850 |
|
DW-1000-□ |
1000 |
8 |
75 |
65×360×900 |
|
DW-1100-□ |
1100 |
8 |
83 |
65×440×900 |
|
DW-1200-□ |
1200 |
8 |
91 |
65×440×900 |
|
注：特殊规格按供需双方协议进行 | | |
|
